CPRO3 USER INTERFACES

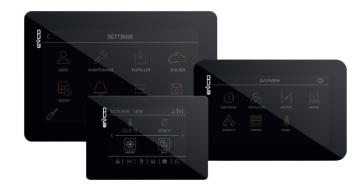

The EPcolor series is an elegant range of programmable remote user interfaces. The interface installed from behind using threaded studs enables it to be placed flush with the panel thus making it fit perfectly with the design of the unit.
The capacitive TFT touch-screen colour graphic display in glass of 3.5 inches (S), 5 inches (M) or 7 inches (L), has 65,000 colours, resolution up to 800x480 pixels and IP65 frontal protection.
The EPcolor series is ideal for setting up user interfaces for applications developed on c-pro 3 programmable controllers which are equipped with a CAN port. The controllers can interact with devices belonging to third parties due to the presence of the MODBUS protocol (configurable both as master and slave) and of up to 2 RS-485 ports.
A model incorporates a temperature sensor, whose readings can be transmitted via BUS.
Highly evolved user interfaces can be set up through the graphic tool GUI-PRO using a wide range of graphics libraries and templates. Moreover, the ability to import backgrounds, load bitmaps and text translation files automatically from a USB flash drive simplify the human-machine interface personalisation process.
The capacitive TFT touch-screen colour graphic display in glass of 3.5 inches (S), 5 inches (M) or 7 inches (L), has 65,000 colours, resolution up to 800x480 pixels and IP65 frontal protection.
The EPcolor series is ideal for setting up user interfaces for applications developed on c-pro 3 programmable controllers which are equipped with a CAN port. The controllers can interact with devices belonging to third parties due to the presence of the MODBUS protocol (configurable both as master and slave) and of up to 2 RS-485 ports.
A model incorporates a temperature sensor, whose readings can be transmitted via BUS.
Highly evolved user interfaces can be set up through the graphic tool GUI-PRO using a wide range of graphics libraries and templates. Moreover, the ability to import backgrounds, load bitmaps and text translation files automatically from a USB flash drive simplify the human-machine interface personalisation process.
FOR DETAILED PRODUCT SPECIFICATIONS PLEASE CHECK THE DOCUMENTS IN "DETAILS" SECTION OR SIMPLY GET IN TOUCH WITH YOUR SALES REPRESENTER!
