EVJ705P9
EVCO EVJ 700 SERİSİ PİŞİRİCİ EKİPMANLAR İÇİN KONTROL CİHAZI
Kategori
Stok Kodu
EVJ705P9
The EVJ 700 compact controller is a modern alternative to electro-mechanical devices for managing horizontal cooking modules in professional kitchens. It offers maximum configurability as it can be used with nine different applications: electric hot plates, ovens, tilting pans, boiling pans, fry-tops, fryers, pasta cookers, bain-marie and grills.
Depending on the application, cooking can be controlled by power or temperature, combined with a timer or needle probe as required. Temperature can be on-off or PI controlled for greater regulation precision.

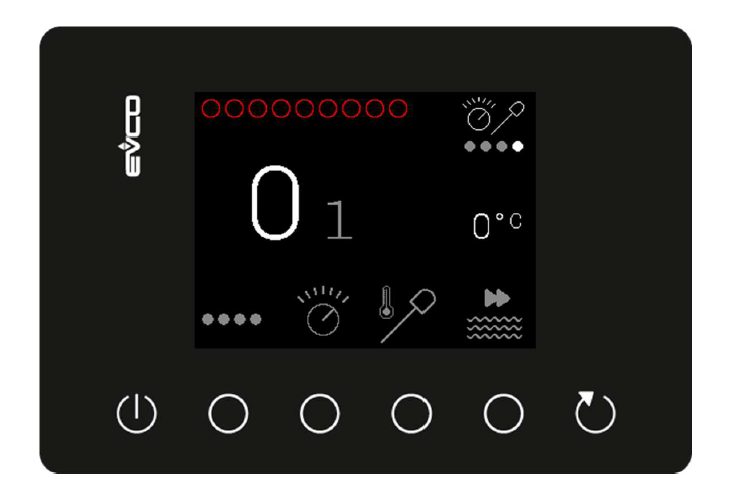

The stylish 2.8 inch LCD graphic display with 6 capacitive touch keys and/or a push encoder provides constant information about the processes in progress, as well as making it easy to set the cooking cycle.

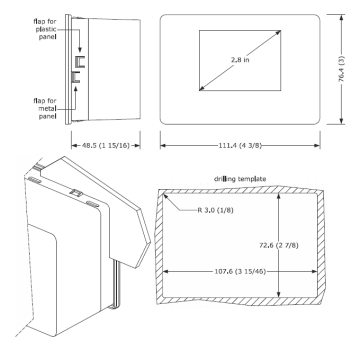

Equipped with IP65 front protection, the controller can be fitted to the panel in the conventional way, built into the front, or concealed under the panel (if made of glass or methacrylate), ensuring high cleaning and hygiene standards.
Users can interact remotely with their equipment using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). Onsite, they can interact from a mobile device with the EVconnect® app which uses Bluetooth Low Energy connectivity. For more details, compare all the connectivity options in the Technical Data table and consult the sections of our website: Products/ Management and Monitoring Systems and Products/ Connectivity Devices.
Depending on the application, cooking can be controlled by power or temperature, combined with a timer or needle probe as required. Temperature can be on-off or PI controlled for greater regulation precision.
The stylish 2.8 inch LCD graphic display with 6 capacitive touch keys and/or a push encoder provides constant information about the processes in progress, as well as making it easy to set the cooking cycle.
Equipped with IP65 front protection, the controller can be fitted to the panel in the conventional way, built into the front, or concealed under the panel (if made of glass or methacrylate), ensuring high cleaning and hygiene standards.
Users can interact remotely with their equipment using the EPoCA® cloud platform with Wi-Fi or Ethernet connectivity (which also enables alternative or parallel control through MODBUS TCP). Onsite, they can interact from a mobile device with the EVconnect® app which uses Bluetooth Low Energy connectivity. For more details, compare all the connectivity options in the Technical Data table and consult the sections of our website: Products/ Management and Monitoring Systems and Products/ Connectivity Devices.
| Voltaj | : | 115-220V |
Ürüne ait orjinal kullanma kılavuzunu indirmek için lütfen buraya tıklayınız.
Ürün kataloğunu indirmek için lütfen buraya tıklayınız.
| EVJ705J9 | EVJ705Z9 | EVJ725J9 | EVJ705J9VG | |
| DISPLAY | ||||
| 2.8 inch LCD colour graphic display | • | • | • | • |
| POWER SUPPLY | ||||
| 115... 230 VAC | • | • | • | • |
| INSTALLATION | ||||
| Recessed in the panel | • | • | • | |
| Concealed under the panel (if made of glass or methacrylate) | • | |||
| ANALOGUE INPUTS | ||||
| Chamber probe (2 wires Pt 1000) | • | |||
| Chamber probe (J/K/2 wires Pt 100) | • | • | • | |
| Needle probe (2 wires Pt 1000) | • | |||
| Needle probe (J/K/2 wires Pt 100) | • | • | • | |
| DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC) | ||||
| Load 1 (configurable) | 16 A | 16 A | 16 A | 16 A |
| Load 2 (configurable) | 5 A | 8 A | 5 A | |
| Load 4 (configurable) | 8 A | 8 A | 8 A | 8 A |
| Load 5 (configurable) | 8 A | 5 A | 8 A | 8 A |
| Load 6 (configurable) | 5 A | 5 A | 5 A | |
| DIGITAL OUTPUTS (command for solid state relays; 12 VDC, 15 mA max) | ||||
| Load 2 (configurable) | • | |||
| Load 6 (configurable) | • | |||
| COMMUNICATIONS PORTS | ||||
| MODBUS TTL | • | • | • | • |
| CONNECTIVITY | ||||
| RS-485 MODBUS RTU (optional through the EVlinking RS-485 module) | • | • | • | • |
| Bluetooth Low Energy for EVconnect app (optional through the EVlinking BLE module) | • | • | • | • |
| Wi-Fi EPoCA/MODBUS TCP (optional through the EVlinking Wi-Fi module with separate 12 Vac/15 Vdc power supply) | • | • | • | • |
| Ethernet EPoCA/MODBUS TCP (optional through the controller/gateway EV3 200 Web) | • | • | • | • |
| OTHER FEATURES | ||||
| Alarm buzzer | • | • | • | • |
