EVD904

EVD904 PARAMETRIC CONTROLLER

MAIN HARDWARE DETAILS

4 DIN module, rail mounting 115-230 V controller

4 Digital outputs (configurable 3A),10 Inputs (3 digital inputs (configurable)+7 digital/analog inputs (configurable) ), 2 Analogue outputs (0-10 V/PWM/phase cut), 2 Triacs (200 mA +  2 A)

USER INTERFACES AVAILABLE ARE;


EV CHILL is a series of controllers with ready-to-use application software for running single- or dual-circuit air to water and water to water chillers with up to 6 compressors.
These controllers are capable of running compressors and fans of both the on-off and modulating types and when adjusting the fans it is possible to have up to 4 steps. Hot gas by-pass valve can also be managed and the inputs and outputs number can be increased through an expansion module.
The models equipped with 2 Triac outputs can directly manage fan speed and external solid state relays.

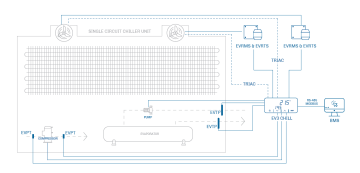

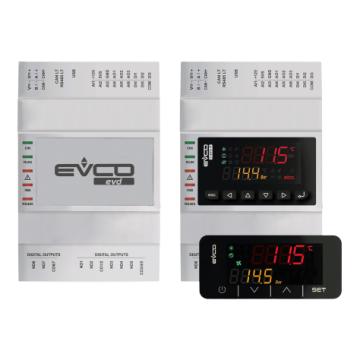

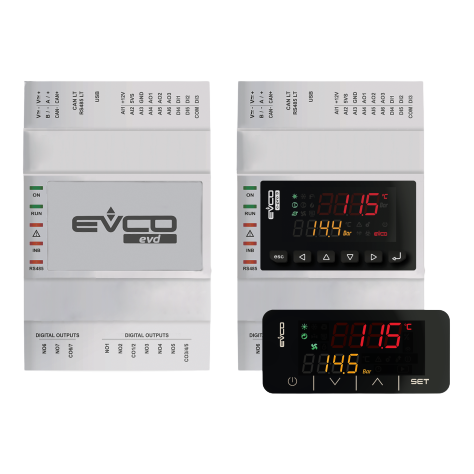

The solution is available in the following hardware formats: - EV3 (74x32mm) with built-in LED display, capacitive touch keys, IP65 front protection, 12 VAC power supply and panel fitting; - EVD (4 DIN modules) in blind version or with built-in LED user interface, 115... 230 VAC power supply and DIN rail installation. Both formats can be connected, according to your needs, to the stylish panel- or wall-mounted interface EVJ LCD or to Vled 3, a reduced-depth interface for panel fitting.

MAIN FEATURES

Please click here for downloading the relevant product brochure

Please click here for downloading the latest HVAC catalogue

Please click here for downloading the user manual


Advantages & Main Features

Ready-to-use application software
Models with 2 Triac outputs for direct management of fan speed and external SSRs
Models with 6-compressor management
Management of on-off and variable capacity compressors
Management of
Up to 4-step fan adjustment
Management of hot gas bypass valve
Standard 74 x 32 mm or 4 DIN modules format

Technical Features

Controllers for single and dual-circuit chillers with up to 6 compressors

EV3 CHILL EVD CHILL
EV3904LM2 EV3906LM2GF EVD904BM9 EVD904BM9MF EVD904LM9MF
VERSION
In a plastic housing, blind
In a plastic housing, with built-in user interface
FORMAT
74 x 32 mm
4 DIN modules
DISPLAY
2-line LED display, 6 keys
2-line LED display, 4 capacitive touch keys
INSTALLATION
Panel-mounted
On a DIN rail
CONNECTIONS
Micro-Fit connectors
Edge connectors
Plug-in screw terminal blocks
POWER SUPPLY
12 VAC
115... 230 VAC
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (NTC) or digital input (dry contact) 5 5 5 5 5
Analogue input (NTC/0-5 V ratiometric/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 2 2 2 2 2
DIGITAL INPUTS (configurable)
Dry contact 1 1 1 1 1
Dry contact for pulse trains up to 2 KHz 2 2 2 2 2
ANALOGUE OUTPUTS (configurable)
0-10 V/PWM/phase cut 2 2 2 2 2
DIGITAL OUTPUTS electro-mechanical relays; A res. @ 250 VAC (configurable)
3 A SPST 4 4 2 2 2
8 A SPDT     1 1 1
12 A SPST     1 1 1
DIGITAL OUTPUTS triac; @ 250 VAC (configurable)
200 mA   1
2 A   1
DIGITAL OUTPUTS open collector (configurable)
12 V max. 40 mA     1 1 1
COMMUNICATIONS PORTS
INTRABUS
MODBUS RS-485 slave
OTHER STANDARD FEATURES
Clock
Alarm buzzer

Notes
None.

Available options
- compatible user interfaces: EVJ LCD, Vled 3 (INTRABUS)
- compatible EEV drivers: EVDRIVE03
- compatible I/O expansions: EVD EXP.
