VCOLOR338 GASTRONOMİ FIRINI KONTROL CIHAZI
Kategori
Stok Kodu
VCOLOR338
Sensör Tipi
FECONST
Sensör Dahil mi? Adedi?
HAYIR 1 / 2
Gastronomi fırınları için kontrol kartları

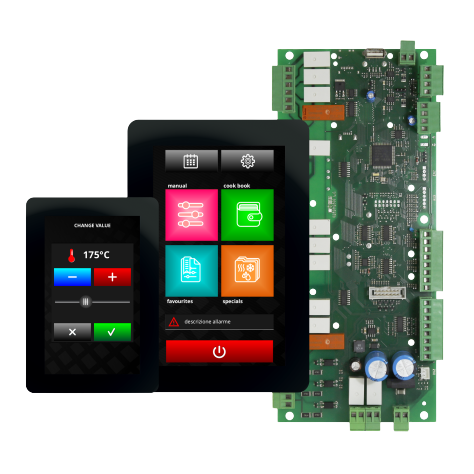

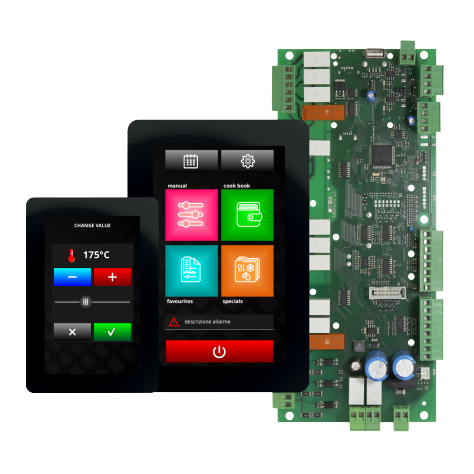

Vcolor 338 is a controller with elegant design for the management of electric gastronomy and pastry ovens (also rotor type).
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
It is able to manage the ventilation both in "on-off” and in modulating mode (in this case it is also necessary to use an external speed regulator), with fan reversal.
The controller has full steam management (generation, injection and extraction), in both automatic and manual mode; steam can be generated either directly or through an external boiler module that also manages water charge and discharge, and the "boiler rinsing" and "boiler washing" functions (the steam generation mode can depend on room temperature).
The machine is also capable of washing management, with both liquid detergents and tabs; using an external burners module it is possible to manage gas ovens.
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
It is able to manage the ventilation both in "on-off” and in modulating mode (in this case it is also necessary to use an external speed regulator), with fan reversal.
The controller has full steam management (generation, injection and extraction), in both automatic and manual mode; steam can be generated either directly or through an external boiler module that also manages water charge and discharge, and the "boiler rinsing" and "boiler washing" functions (the steam generation mode can depend on room temperature).
The machine is also capable of washing management, with both liquid detergents and tabs; using an external burners module it is possible to manage gas ovens.
Upon request, the controllers can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform, with the option of starting/stopping working cycles.
For more details, please visit the "Remote management and monitoring products/systems” section of our website.
Avantajlar ve ana özellikler
* Elegant design, touch-screen, flush mounting and ease of use.
* Aesthetic fit with the unit.
* Model for different types of electric ovens (including rotary ones).
* Management of the ventilation in both "on-off” and modulating mode, with fan reversal.
* Full steam management (generation, injection and extraction), both in automatic and
manual mode.
* Steam generation in direct mode or through the use of an external boiler module.
* Washing management with both liquid detergent and tab.
* Management of gas ovens using an external burners module.
ÜRÜN BROŞÜRÜ VE ÖRNEK UYGULAMALAR DOSYASINI İNDİRMEK İÇİN BURAYA TIKLAYINIZ.
Avantajlar ve ana özellikler
Controllers with 5/7-inch graphic display
| Vcolor 338M/L (5"/7") |
Boiler | Burners | |||
| EVCMC33DJ2E | EVCMC33DC2E | EVCLE305XXE | EVCLE302XXE | ||
| Power supply | |||||
| 12 VAC | • | • | |||
| fed by the controller | • | • | |||
| Analog inputs | |||||
| chamber probe (J/K) | • | ||||
| chamber probe (2 wires Pt 100) | • | ||||
| needle probe (J/K) | • | ||||
| needle probe (2 wires Pt 100) | • | ||||
| fume probe (J/K) | • | ||||
| fume probe (2 wires Pt 100) | • | ||||
| boiler probe (J/K) | • | ||||
| boiler probe (Pt 100 2 wires) | • | ||||
| Digital inputs (for NA/NC contact) | |||||
| door switch | • | • | |||
| rack limit switch | • | • | |||
| fan thermal switch (230 VAC) | • | • | |||
| thermal switch (230 VAC) | • | • | |||
| electrical absorption (230 VAC) | • | • | |||
| boiler water minimum level | • | • | |||
| boiler water maximum level | • | • | |||
| boiler motor protection (230 VAC) | • | ||||
| presence of a pilot light (230 VAC) | • | ||||
| presence of boiler flame (230 VAC) | • | ||||
| Analog outputs | |||||
| 0-10 V (fan) | • | • | |||
| Digital outputs (electromechanical relays; res. A @ 250 VAC) | |||||
| temperature regulation | 1 A | 1 A | |||
| direct steam injection | 1 A | 1 A | |||
| air vent | 1 A | 1 A | |||
| room light | 1 A | 1 A | |||
| technical room fan | 1 A | 1 A | |||
| rack rotation | 1 A | 1 A | |||
| load 7 (default fan) | 1 A | 1 A | |||
| load 8 (default not used) | 1 A | 1 A | |||
| load 9 (default fume reduction) | 1 A | 1 A | |||
| load 10 ( default washing water valve) | 1 A | 1 A | |||
| load 11 (liquid detergent injection default) | 1 A | 1 A | |||
| load 12 (default washing liquid discharge) | 1 A | 1 A | |||
| load 13 (default rinse aid injection) | 1 A | 1 A | |||
| boiler temperature regulation | 1 A | ||||
| boiler steam injection | 1 A | ||||
| boiler water drain | 1 A | ||||
| boiler water charge | 1 A | ||||
| boiler burner | 1 A | ||||
| room burner | 1 A | ||||
| Communication ports | |||||
| MODBUS RS-485 | • | • | |||
| USB | • | • | |||
| for electronic ignition card for atmospheric burners | • | ||||
| Other features | |||||
| real time clock | • | • | |||
| alarm buzzer | • | • | |||
| management of the ventilation both in "on-off” and in modulating mode, with fan reversal | • | • | |||
| washing management with both liquid detergent and tab | • | • | |||
| "Weekly programmed switch on” function | • | • | |||
| "programs” function | • | • | |||
| Notes | |||||
| None. | |||||
