C-PRO 3 NODE KILO AHU

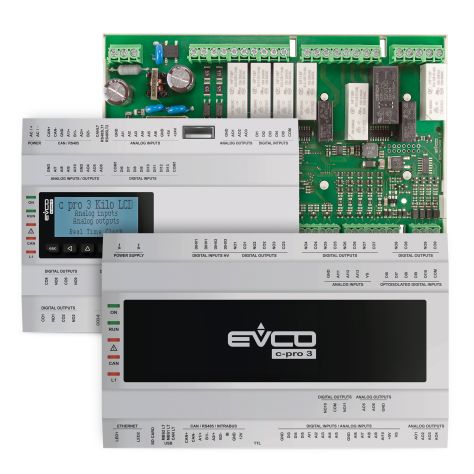

MAIN HARDWARE DETAILS
8 DIN module, rail mounting 24 V controller
11 Digital outputs (configurable 3A), 23 Inputs (13 digital inputs (configurable)10 digital/analog inputs (configurable) ), 6 Analogue outputs (0-10 V/PWM), INTRABUS, CANBUS, 2X MODBUS RS-485, ETHERNET and USB ports

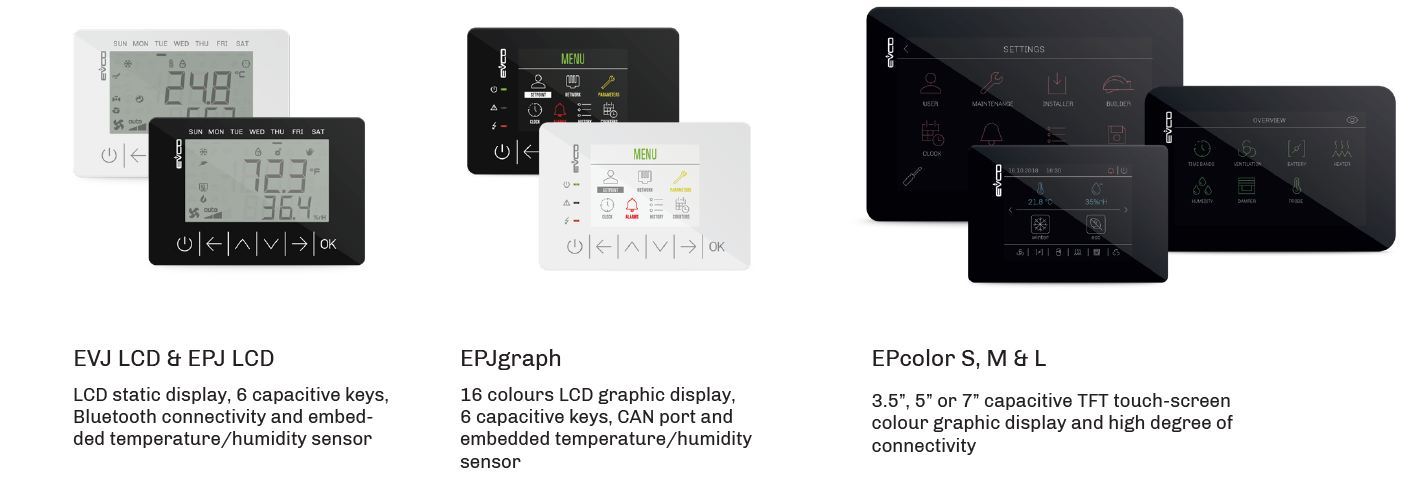

USER INTERFACES AVAILABLE ARE;
c-pro 3 AHU is a highly configurable controllers for the management of single or dual-flow (with heat recovery) air handling units operating with three coils and an additional pre-heating coil. The coils can be electrical, water or direct expansion.
The controller is able to manage the return fan and the supply fan independently (up to 3 speeds or modulating according to the supply static pressure and according to the room air quality). Options include the management via serial port of the modulating fan (supply and return) by means of dedicated EVCO inverters or of Fan Walls with up to 16 EC fans for each flow.
The controller can manage the external damper, the bypass damper and the mixing chamber damper, as well as the humidifier, both in "on-off” and modulating mode.
Upon request, the controller can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform.
Upon request, the controller can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform.

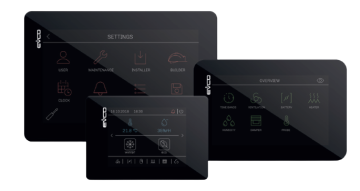

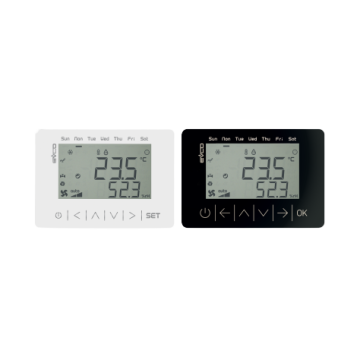

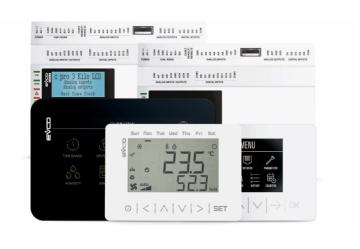

Available in a 8 or 10 DIN-module format with up to 40 I/Os, the controller is compatible with a wide range of state-of-the-art user interfaces for panel or wall installation. Some of them have built-in temperature and humidity sensors.
MAIN FEATURES
- Interaction with the unit from the Internet through the EPoCA cloud platform
- Variety of communication ports (RS-485, CAN, USB and Ethernet) and supported
communication protocols (BACNet and Web Server)
- Modulating fan management via serial port with EVCO inverters
- Management of 3 coils + 1 pre-heating coil
- Humidifier management
- Management of the external, bypass and mixing chamber dampers
- Equipped with up to 40 I/Os
- Management "Fan Walls" with 16 EC fans for each flow via MODBUS
