C-PRO 3OEM HRV

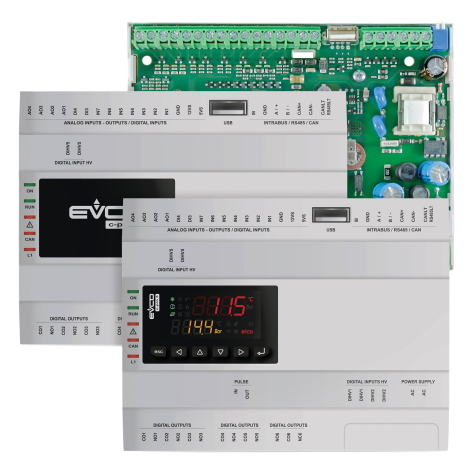

C-PRO 3OEM HRV CONTROLLER
Stok Kodu
C-PRO 3OEM HRV
MAIN HARDWARE DETAILS
8 DIN module, rail mounting 115-230 V controller
6 Digital outputs (configurable 3A),11 Inputs (4 digital inputs (configurable)+7 digital/analog inputs (configurable) ), 4 Analogue outputs (0-10 V/PWM), INTRABUS, CANBUS, MODBUS RS-485 and USB ports

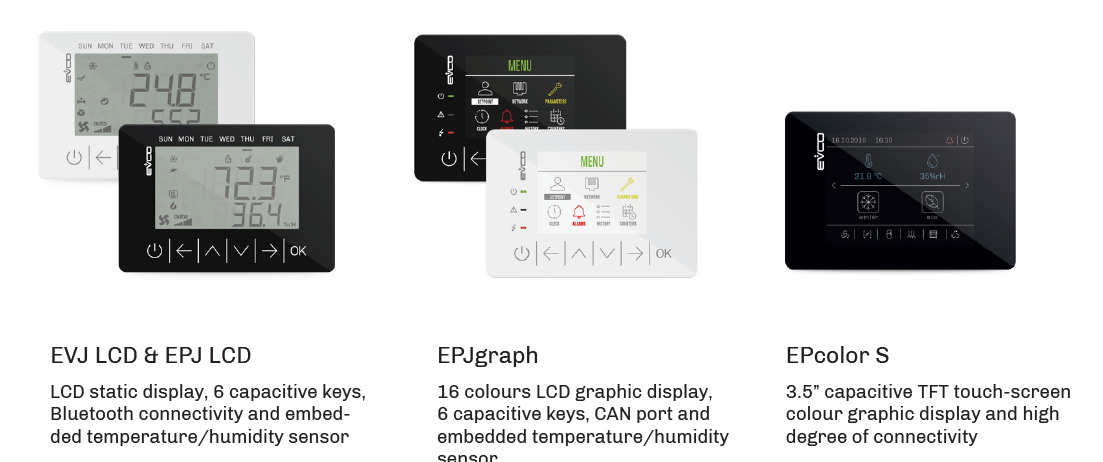

USER INTERFACES AVAILABLE ARE;
The controllers c-pro 3 OEM HRV have fully configurable inputs and outputs for an advanced management of heat recovery ventilation units for air renewal and handling in residential applications, in compliance with the most rigorous standards for air-quality and building energy certification.
Independent management of supply and extraction fans (both EC modulating and multispeed types) makes optimum flow distribution possible in all situations. Room comfort is achieved by the ability to manage different heat recovery exchangers (with free-cooling and free-heating functions) and sources of heating/cooling.
Available in an 8 DIN format, in the open board version or with plastic enclosure, the controllers are compatible with a wide range of state-of-the-art user interfaces for panel or wall installation. Some of them have built-in temperature and humidity sensors.
Independent management of supply and extraction fans (both EC modulating and multispeed types) makes optimum flow distribution possible in all situations. Room comfort is achieved by the ability to manage different heat recovery exchangers (with free-cooling and free-heating functions) and sources of heating/cooling.
Available in an 8 DIN format, in the open board version or with plastic enclosure, the controllers are compatible with a wide range of state-of-the-art user interfaces for panel or wall installation. Some of them have built-in temperature and humidity sensors.

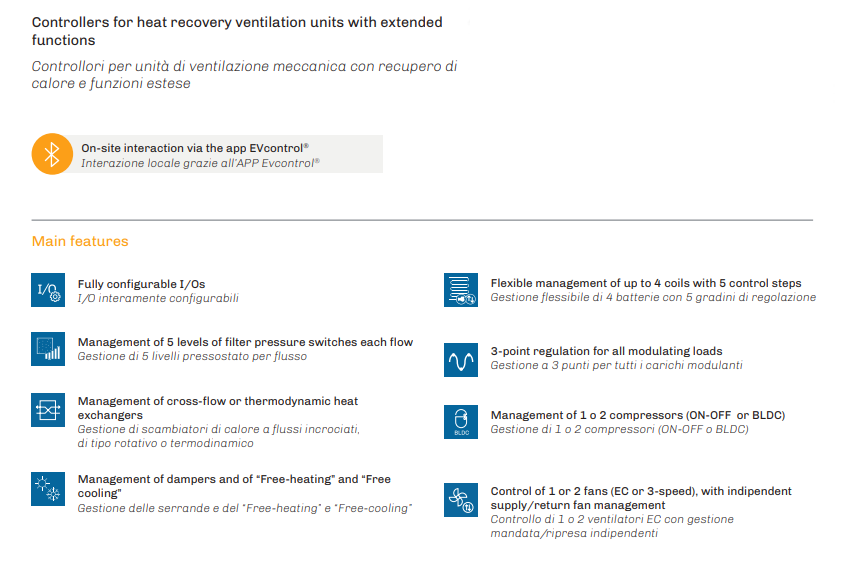

MAIN FEATURES
