CPRO3 PROGR. LINE
CPRO3 PROGRAMMABLE CONTROLLER FAMILY
Kategori
Stok Kodu
CPRO3 PROGR. LINE
c-pro 3 Programmable controllers with a large number of communications protocols and I/Os (up to 43) suitable to a vast range of applications (mainly HVAC/R). The application software can be designed in an intuitive way thanks to the UNI-PRO 3 integrated development environment.
The Ethernet port with built-in web server provides browser access to the HTML(5) pages of the application developed and the simultaneous presence of two RS-485 makes possible the joint use of such communications protocols as MODBUS TCP, MQTT, BACnet, etc. These features facilitate communications between devices and their use in control and maintenance systems, both onsite and remote.
The data-logging function enables recording of up to 32 process variables/32 events to facilitate unit monitoring (e.g. energy consumption) and data traceability (which can be downloaded in CSV format by USB). The USB and Ethernet ports make it possible to reprogram, download and debug application software onsite or remotely, thus simplifying commissioning and subsequent diagnostics.

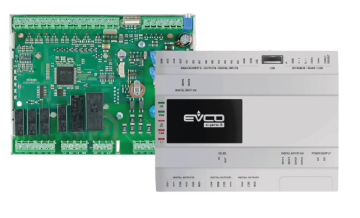

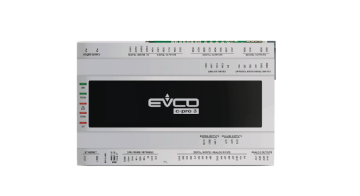

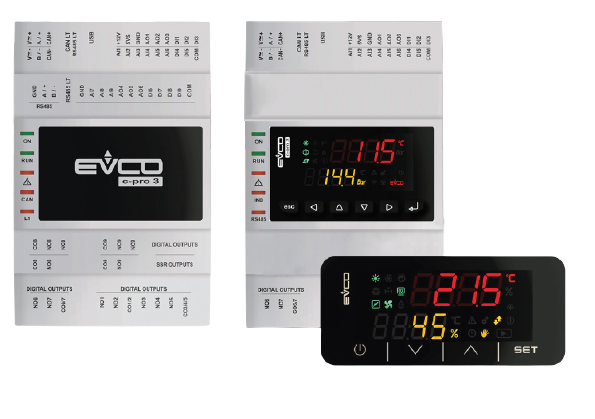

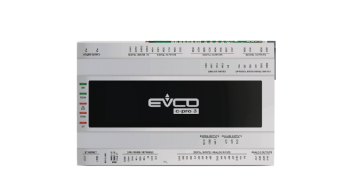

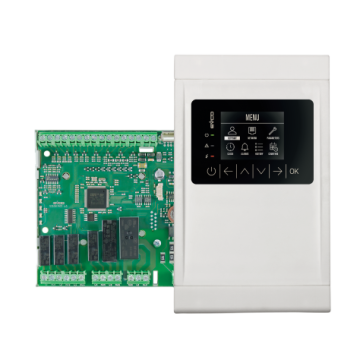

Cpro 3 Family products are available in pannel mounting as well as standard 4, 8 and 10 DIN module format, blind or with a built-in 6-key user interface, with an LCD graphic display or a LED display with function icons.
The Ethernet port with built-in web server provides browser access to the HTML(5) pages of the application developed and the simultaneous presence of two RS-485 makes possible the joint use of such communications protocols as MODBUS TCP, MQTT, BACnet, etc. These features facilitate communications between devices and their use in control and maintenance systems, both onsite and remote.
The data-logging function enables recording of up to 32 process variables/32 events to facilitate unit monitoring (e.g. energy consumption) and data traceability (which can be downloaded in CSV format by USB). The USB and Ethernet ports make it possible to reprogram, download and debug application software onsite or remotely, thus simplifying commissioning and subsequent diagnostics.
Cpro 3 Family products are available in pannel mounting as well as standard 4, 8 and 10 DIN module format, blind or with a built-in 6-key user interface, with an LCD graphic display or a LED display with function icons.
FOR DETAILED PRODUCT SPECIFICATIONS PLEASE CHECK THE DOCUMENTS IN "DETAILS" SECTION OR SIMPLY GET IN TOUCH WITH YOUR SALES REPRESENTER!
Please click here for downloading the latest Programmable products catalogue
Please click to the related link below for downloading the user manuals and specs or here to go to the UNI-PRO development enviroment.
Some Examples, Advantages & Main Features
