VCOLOR348 ROTARY FIRINLARI İÇİN KONTROL CİHAZI
Kategori
Stok Kodu
VCOLOR348
Sensör Tipi
FECONST
Sensör Dahil mi? Adedi?
HAYIR 1 / 2
Pizza ve ekmek fırınları için taştabanlı fırın kontrol kartları

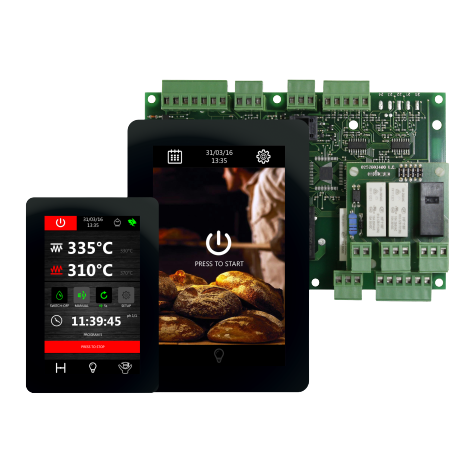

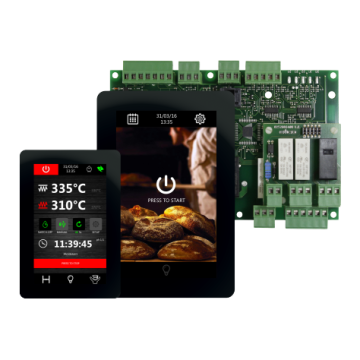

Vcolor 348 is a stylish controller for managing rotary ovens for bread and pastry-making.
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
It can run on/off (one or two speed) or modulating fans and it can control the rack rotation in both automatic and manual mode, with a great many settings available.
It has a complete steam management system (injection and venting), either directly or by way of an external boiler module that can also control water charge and discharge and steam generation. Using an external burner module it is possible to manage gas ovens.Vcolor 318/328 is a range of controllers with elegant design for the management of different typologies of "top-floor" electric ovens.
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
It can run on/off (one or two speed) or modulating fans and it can control the rack rotation in both automatic and manual mode, with a great many settings available.
It has a complete steam management system (injection and venting), either directly or by way of an external boiler module that can also control water charge and discharge and steam generation. Using an external burner module it is possible to manage gas ovens.Vcolor 318/328 is a range of controllers with elegant design for the management of different typologies of "top-floor" electric ovens.
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.
The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
These controllers are suitable for different types of electric ovens due to the independent management of the power and the temperature at the top and on the floor of the oven. The model Vcolor 318 manages top-floor heaters by electro-mechanical relays, while the model Vcolor 328 has 2 12VDC outputs for managing external SSRs.
They have the full steam management (generation, injection and venting), both in automatic and manual mode, the "programmed weekly switch on”, "cooking timer” and "programs” functions and energy saving strategies.
Upon request, the controllers can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform, with the option of starting/stopping working cycles.
For more details, please visit the "Remote management and monitoring products/systems” section of our website.
Avantajlar ve Ana Özellikler
* Elegant design, touch-screen, flush mounting and ease of use.
* Aesthetic fit with the unit.
* Rack rotation settings both automatic and manual
* Full steam management (generation, injection and extraction), both in automatic and
manual mode.
* Steam generation in direct mode or through the use of an external boiler module.
* Management of gas ovens using an external burners module.
ÖRNEK UYGULAMALAR DOSYASINI İNDİRMEK İÇİN BURAYA TIKLAYINIZ.
| Vcolor 348M/L (5"/7") |
Boiler | Burners | ||
| EVCMC34DJ2E | EVCMC34DC2E | EVCLE305XXE | EVCLE302XXE | |
| Power supply | ||||
| 12 VAC | • | • | ||
| fed by the controller | • | • | ||
| Analog inputs | ||||
| chamber probe (J/K) | • | |||
| chamber probe (2 wires Pt 100) | • | |||
| fume probe (J/K) | • | |||
| fume probe (2 wires Pt 100) | • | |||
| boiler probe (J/K) | • | |||
| boiler probe (Pt 100 2 wires) | • | |||
| Digital inputs (for NA/NC contact) | ||||
| door switch | • | • | ||
| rack limit switch | • | • | ||
| fan thermal switch (230 VAC) | • | • | ||
| thermal switch (230 VAC) | • | • | ||
| electrical absorption (230 VAC) | • | • | ||
| boiler water minimum level | • | • | ||
| boiler water maximum level | • | • | ||
| boiler motor protection (230 VAC) | • | |||
| presence of a pilot light (230 VAC) | • | |||
| presence of boiler flame (230 VAC) | • | |||
| Analog outputs | ||||
| 0-10 V (fan) | • | • | ||
| Digital outputs (electromechanical relays; res. A @ 250 VAC) | ||||
| temperature regulation | 1 A | 1 A | ||
| direct steam injection | 1 A | 1 A | ||
| air vent | 1 A | 1 A | ||
| room light | 1 A | 1 A | ||
| technical room fan | 1 A | 1 A | ||
| rack rotation | 1 A | 1 A | ||
| load 7 (fan left direction) | 1 A | 1 A | ||
| load 8 (fan right direction) | 1 A | 1 A | ||
| load 9 (fan speed) | 1 A | 1 A | ||
| boiler temperature regulation | 1 A | |||
| boiler steam injection | 1 A | |||
| boiler water drain | 1 A | |||
| boiler water charge | 1 A | |||
| boiler burner | 1 A | |||
| room burner | 1 A | |||
| Communication ports | ||||
| MODBUS RS-485 | • | • | ||
| USB | • | • | ||
| for electronic ignition card for atmospheric burners | • | |||
| Other features | ||||
| real time clock | • | • | ||
| alarm buzzer | • | • | ||
| management of the ventilation in both "on-off” and modulating mode | • | • | ||
| "Weekly programmed switch on” function | • | • | ||
| "programs” function | • | • | ||
| Notes | ||||
| None. | ||||
