VCOLOR819
VCOLOR819 ''BLAST CHILLER'' CONTROLLER
Kategori
Stok Kodu
VCOLOR819
Sensör adedi ve tipi
2/3 PTC/NTC
Sensör Dahil mi? Adedi?
HAYIR
The Vcolor 819/829 series is a range of stylish controllers for managing blast chillers.
Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, in either vertical (819) or horizontal (829) format. The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.
These controllers can run blast chilling and blast freezing cycles, both temperature and time controlled, with hard/soft and intensity management functions, the latter requiring an external fan speed regulator. Before each temperature cycle, a test is run to check that the needle probe is correctly inserted (including multipoint probes).
An expansion module makes it possible to transform the controller into a multi-functional device for managing retarding-proofing and slow cooking cycles. It is also possible to team a slow cooking function with subsequent holding or blast chilling and conservation functions. manage the loads needed to run thawing cycles, needle probe heating and cabinet sterilisation.
Bluetooth BLE connectivity (built-in or enabled by the external EVlink BLE interface) and Wi-Fi connectivity (enabled by the external EVlink Wi-Fi interface) allow interaction with the unit from mobile devices through the EVconnect app for Android and iOS or from the Internet through the EPoCA cloud platform respectively. For more details, please visit the "Remote management and monitoring products/systems” section of our website.
Main features
* Management of blast chilling and freezing cycles, both
temperature and time controlled, with hard/soft function
* Management of 8 special cycles

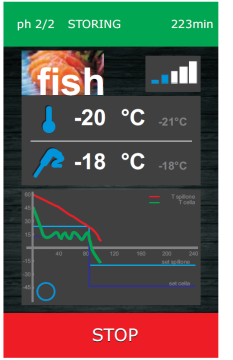

* Real time graphic display of the cycle in progress
* 5 or 7- inch capacitive touch-screen TFT graphic display, 65K colors and 800 x 480 pixel resolution
* IP65 frontal protection
* Stylish design, flush mounting and ease of use
* Needle probe insertion test
* TTL port for MODBUS serial communication
